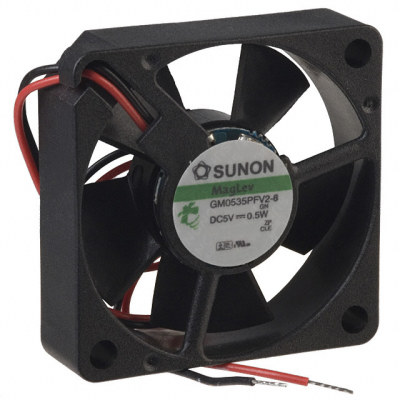

GM0535PFV2-8.GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | GM0535PFV2-8.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 35X10MM VAPO 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7500 RPM
- Noise
- 22.0 dB(A)
- Width
- 10.00mm
- Series
- MagLev® GM
- Weight
- 0.023 lb (10.43 g)
- Air Flow
- 6.5 CFM (0.182m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 500mW
- Voltage Range
- 3 ~ 6VDC
- Static Pressure
- 0.120 in H2O (29.9 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 35mm L x 35mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.100A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
