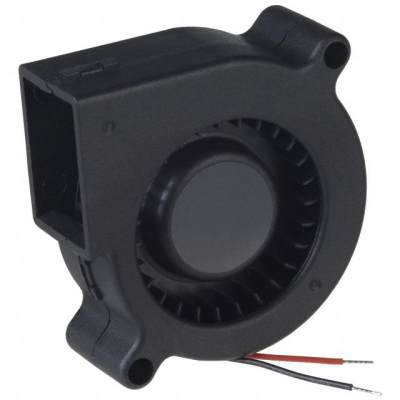

GB1205PKV3-8AY.GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | GB1205PKV3-8AY.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 50X20MM 12VDC WIRE | $12.68 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4400 RPM
- Noise
- 30.0 dB(A)
- Width
- 20.00mm
- Series
- MagLev® GB
- Weight
- 0.073 lb (33.11 g)
- Air Flow
- 4.8 CFM (0.134m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 1.10W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.460 in H2O (114.6 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square/Rounded - 50mm L x 50mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.088A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
