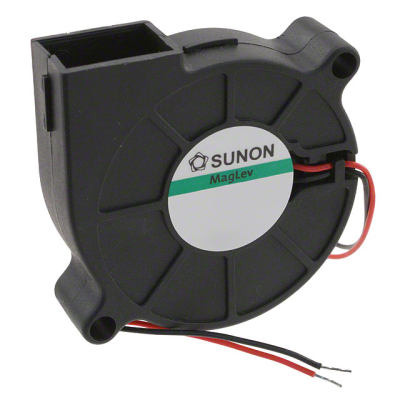

GB1205PHVX-8AY.GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | GB1205PHVX-8AY.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 51.6X15MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6000 RPM
- Noise
- 42.2 dB(A)
- Width
- 15.00mm
- Series
- MagLev® GB
- Weight
- 0.066 lb (29.94 g)
- Air Flow
- 4.7 CFM (0.132m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 2.00W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.970 in H2O (241.6 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square/Rounded - 51.6mm L x 51.6mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.170A
- Operating Temperature
- 14 ~ 122°F (-10 ~ 50°C)
