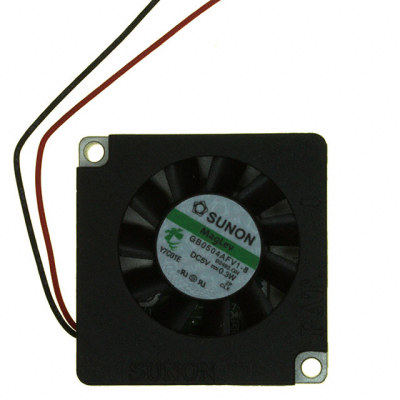

GB0504AFV1-8.B2493.GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | GB0504AFV1-8.B2493.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 40X9.3MM 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6500 RPM
- Noise
- 30.0 dB(A)
- Width
- 9.30mm
- Series
- MagLev® GB
- Weight
- 0.04 lb (18.14 g)
- Air Flow
- 1.8 CFM (0.050m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 300mW
- Voltage Range
- 3 ~ 6VDC
- Static Pressure
- 0.300 in H2O (74.7 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.060A
- Operating Temperature
- 14 ~ 194°F (-10 ~ 90°C)
