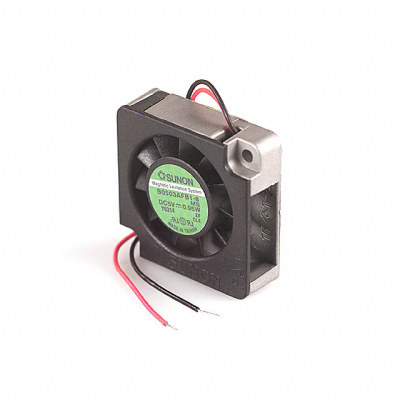

B0503AFB1-8 MS
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | B0503AFB1-8 MS | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 30X10MM 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 10000 RPM
- Noise
- 36.0 dB(A)
- Width
- 10.00mm
- Series
- -
- Weight
- 0.023 lb (10.43 g)
- Air Flow
- 1.3 CFM (0.036m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- -
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 950mW
- Voltage Range
- -
- Static Pressure
- 0.350 in H2O (87.2 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 30mm L x 30mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.190A
- Operating Temperature
- -
