Lanka Micro

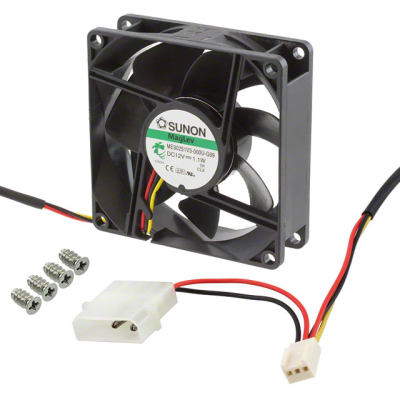

3159/ME80251V3-000U-G99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3159/ME80251V3-000U-G99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X25MM VAPO 12VDC | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2600 RPM
- Noise
- 28.0 dB(A)
- Width
- 25.00mm
- Series
- MagLev® ME
- Weight
- 0.165 lb (74.84 g)
- Air Flow
- 33.0 CFM (0.924m³/min)
- Fan Type
- Tubeaxial, Case Fan
- Features
- Auto Restart, Speed Sensor (Tach)
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- LP4 Assembly
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 1.10W
- Voltage Range
- 4.5 ~ 13.8VDC
- Static Pressure
- 0.110 in H2O (27.4 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.081A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
