Lanka Micro

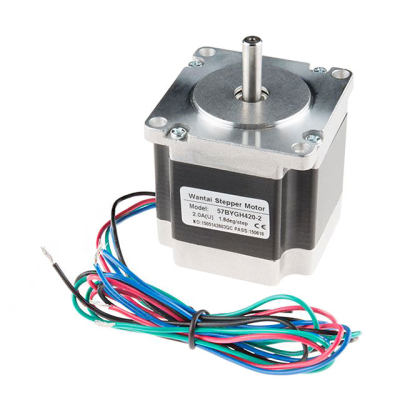

ROB-13656
| Manufacturer: | SparkFun Electronics |
In Stock 33 pcs
|
|
|---|---|---|---|
| Datasheet: | ROB-13656 | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEP MOTOR HYBRID BIPOLAR 3.2V | $38.69 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Hybrid
- Series
- -
- Weight
- -
- Accuracy
- ±5%
- Features
- Round Shaft
- Approvals
- -
- Coil Type
- Bipolar
- Step Angle
- 1.8°
- Part Status
- Active
- Rotor Inertia
- -
- Coil Resistance
- 1.6 Ohms
- NEMA Frame Size
- 23
- Voltage - Rated
- 3.2VDC
- Diameter - Shaft
- 0.250" (6.35mm)
- Size / Dimension
- Square - 2.220" x 2.220" (56.40mm x 56.40mm)
- Termination Style
- Wire Leads
- Steps per Revolution
- 200
- Current Rating (Amps)
- 2A
- Mounting Hole Spacing
- 1.856" (47.14mm)
- Operating Temperature
- -
- Length - Shaft and Bearing
- 0.827" (21.00mm)
- Torque - Holding (oz-in / mNm)
- 125 / 882.7
