9WP0612G401
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9WP0612G401 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

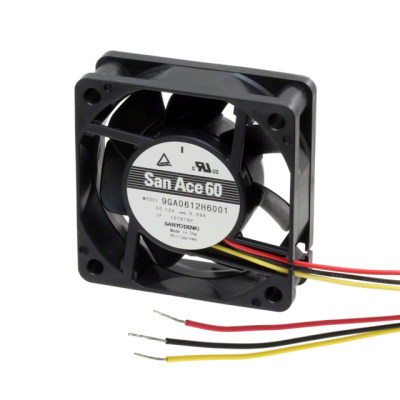

| Description: | FAN 60X25MM 12VDC IP68 TACH | $21.24 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5600 RPM
- Noise
- 39.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 60W
- Weight
- 0.243 lb (110.22 g)
- Air Flow
- 27.5 CFM (0.770m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.52W
- Voltage Range
- 10.2 ~ 13.2VDC
- Static Pressure
- 0.351 in H2O (87.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- -4 ~ 140°F (-20 ~ 60°C)
