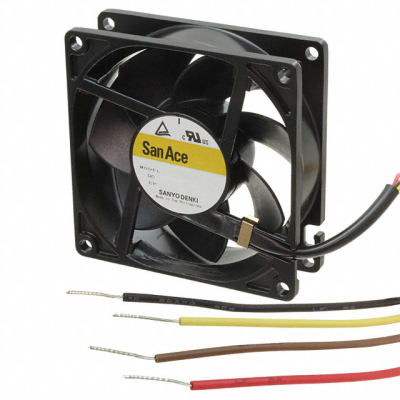

9WL0824P4J001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9WL0824P4J001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 80X25MM 24VDC IP68 RBLS TACH | $81.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7400 RPM
- Noise
- 49.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 80W
- Weight
- 0.331 lb (150.14 g)
- Air Flow
- 73.0 CFM (2.04m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.72W
- Voltage Range
- 21.6 ~ 26.4VDC
- Static Pressure
- 0.710 in H2O (176.9 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 180000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- 0.280A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
