Lanka Micro

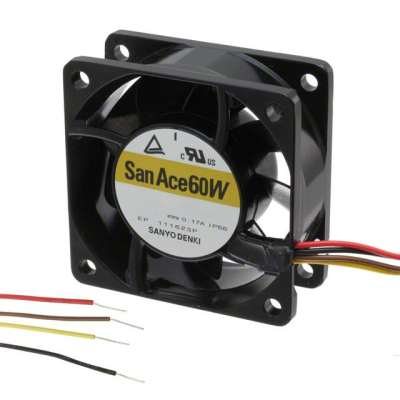

9WL0624P4S001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9WL0624P4S001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 60X25MM 24VDC IP68 RBLS | $73.52 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 11000 RPM
- Noise
- 53.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 60W
- Weight
- 0.243 lb (110.22 g)
- Air Flow
- 49.4 CFM (1.38m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8.16W
- Voltage Range
- 21.6 ~ 26.4VDC
- Static Pressure
- 1.204 in H2O (299.9 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 180000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- 0.340A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
