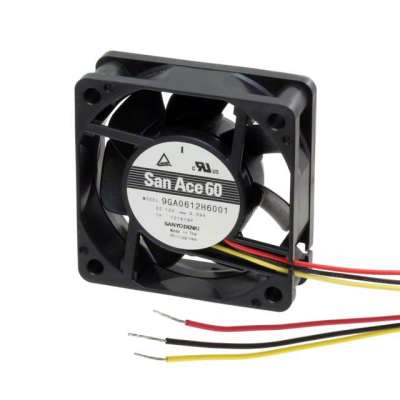

9GA0612H6001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 17 pcs
|
|
|---|---|---|---|
| Datasheet: | 9GA0612H6001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 60X20MM 12VDC TACH | $11.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4100 RPM
- Noise
- 29.0 dB(A)
- Width
- 20.00mm
- Series
- San Ace 60
- Weight
- 0.154 lb (69.85 g)
- Air Flow
- 18.4 CFM (0.515m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.08W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- 0.180 in H2O (44.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 60000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
