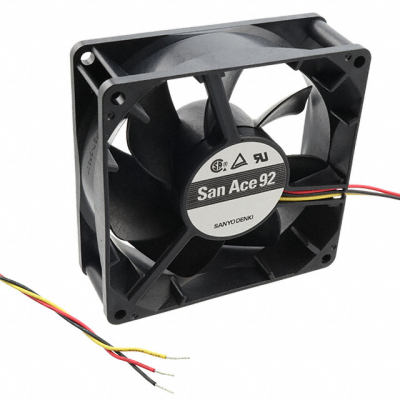

9G0912S2D01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 20 pcs
|
|
|---|---|---|---|
| Datasheet: | 9G0912S2D01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC AXIAL FAN 92X92X32MM LOCK | $14.75 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3500 RPM
- Noise
- 38.0 dB(A)
- Width
- 32.00mm
- Series
- San Ace 92
- Weight
- 0.375 lb (170.1 g)
- Air Flow
- 70.7 CFM (1.98m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 4.56W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.309 in H2O (77.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.380A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
