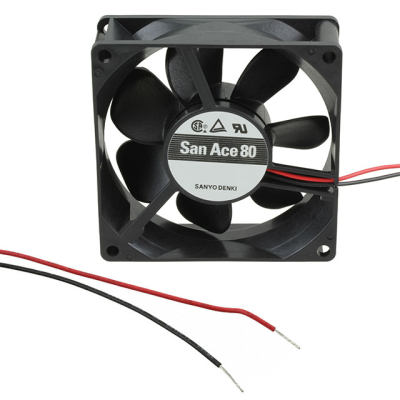

9G0848G102
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 74 pcs
|
|
|---|---|---|---|
| Datasheet: | 9G0848G102 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 80X38MM 48VDC | $18.23 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6300 RPM
- Noise
- 51.0 dB(A)
- Width
- 38.00mm
- Series
- San Ace 80
- Weight
- 0.375 lb (170.1 g)
- Air Flow
- 90.0 CFM (2.52m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 13.00W
- Voltage Range
- 40.8 ~ 55.2VDC
- Static Pressure
- 0.847 in H2O (211.0 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.270A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
