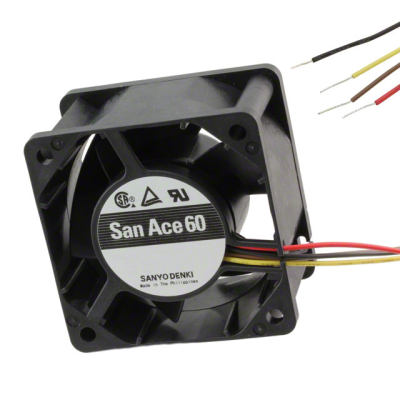

9G0612P4S001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9G0612P4S001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 60X25MM 12VDC TACH,PWM | $19.58 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 11000 RPM
- Noise
- 53.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 60
- Air Flow
- 49.4 CFM (1.38m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8.04W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 1.200 in H2O (298.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.670A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
