Lanka Micro

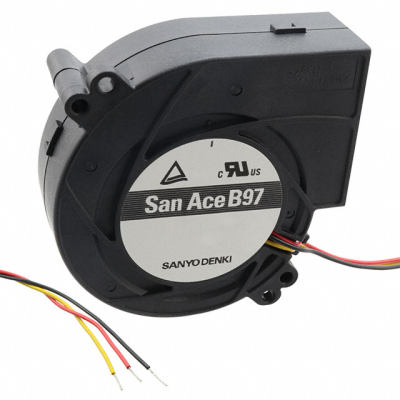

9BMB12K201
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9BMB12K201 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | EC AXIAL 97X33MM TACH | $19.01 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6850 RPM
- Noise
- 66.0 dB(A)
- Width
- 33.00mm
- Series
- San Ace B97
- Air Flow
- 56.8 CFM (1.59m³/min)
- Fan Type
- Motorized Impellers
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 40.80W
- Voltage Range
- 7 ~ 13.2VDC
- Static Pressure
- 5.140 in H2O (1280.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Rectangular/Rounded - 97.1mm L x 95mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 3.40A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
