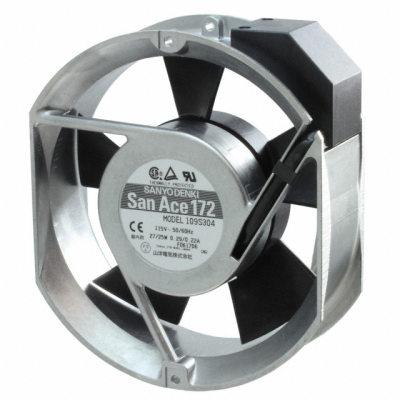

109S304
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 81 pcs
|
|
|---|---|---|---|
| Datasheet: | 109S304 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 172X51MM 115VAC SIDE CUT | $62.43 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3500 RPM
- Noise
- 56.0 dB(A)
- Width
- 51.00mm
- Series
- San Ace 172
- Weight
- 2.3 lbs (1 kg)
- Air Flow
- 226.1 CFM (6.33m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, PSE, TUV, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 25.00W
- Voltage Range
- -
- Static Pressure
- 0.787 in H2O (196.0 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- 25000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.540A
- Operating Temperature
- -22 ~ 140°F (-30 ~ 60°C)
