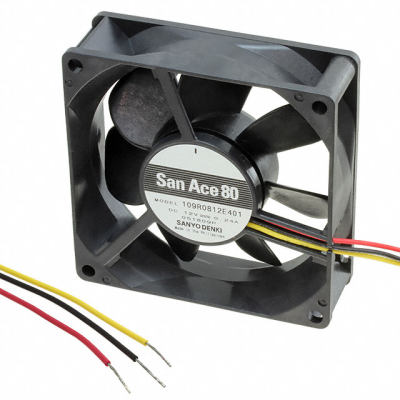

109R0812E401
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 17 pcs
|
|
|---|---|---|---|
| Datasheet: | 109R0812E401 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC AXIAL FAN 80X80X25MM TACH | $10.41 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3700 RPM
- Noise
- 35.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 80
- Air Flow
- 46.3 CFM (1.30m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.88W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.232 in H2O (57.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.240A
- Operating Temperature
- -4 ~ 140°F (-20 ~ 60°C)
