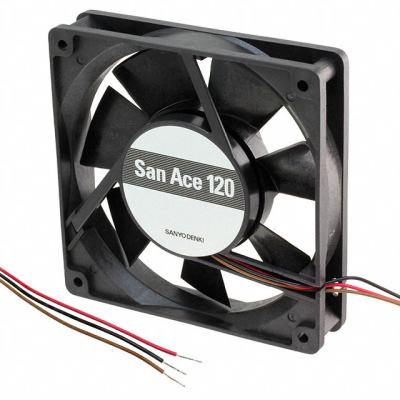

109P1212T4H12
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 109P1212T4H12 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 120X25MM 12VDC THERM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2800 RPM
- Noise
- 40.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 120
- Weight
- 0.463 lb (210.01 g)
- Air Flow
- 88.2 CFM (2.47m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermistor, External
- Approvals
- CSA, TUV, UR
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.60W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.216 in H2O (53.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.550A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
