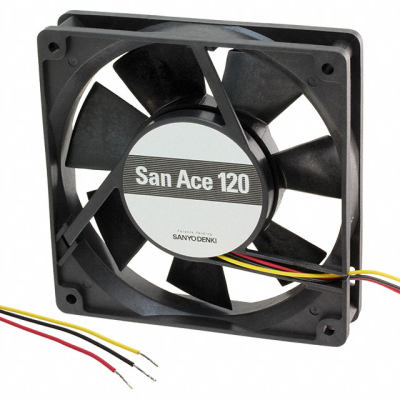

109P1212H4D01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 16 pcs
|
|
|---|---|---|---|
| Datasheet: | 109P1212H4D01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 120X25MM 12VDC LOCK | $29.05 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2850 RPM
- Noise
- 33.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 120
- Air Flow
- 51.2 CFM (1.43m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CSA, TUV, UR
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.88W
- Voltage Range
- 43 ~ 53VDC
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
