Lanka Micro

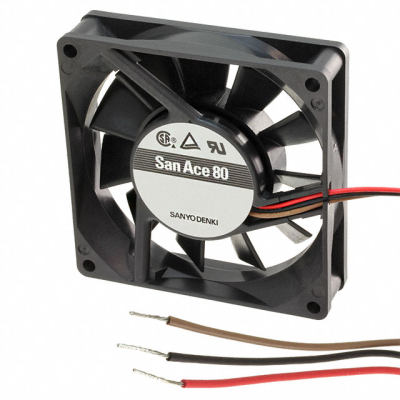

109P0812T6H12
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 109P0812T6H12 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 80X20MM 12VDC THERM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2900 RPM
- Noise
- 31.0 dB(A)
- Width
- 20.00mm
- Series
- San Ace 80
- Weight
- 0.22 lb (99.79 g)
- Air Flow
- 29.7 CFM (0.832m³/min)
- Fan Type
- Tubeaxial
- Features
- Thermistor, External
- Approvals
- CSA, TUV, UR
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.16W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.118 in H2O (29.4 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 60000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.180A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
