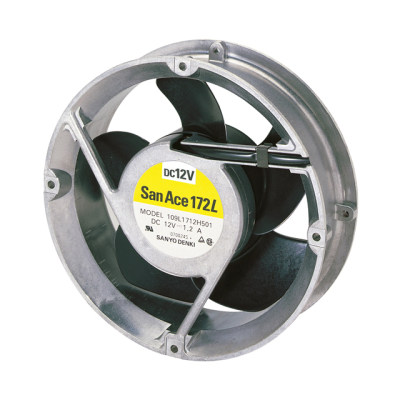

109L1712H501
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 109L1712H501 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 172X51MM 12VDC RBLS TACH | $71.37 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3050 RPM
- Noise
- 47.0 dB(A)
- Width
- 51.00mm
- Series
- San Ace 172L
- Weight
- 1.7 lbs (771.1 g)
- Air Flow
- 226.0 CFM (6.33m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 14.40W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.551 in H2O (137.2 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 100000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 172mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.20A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
