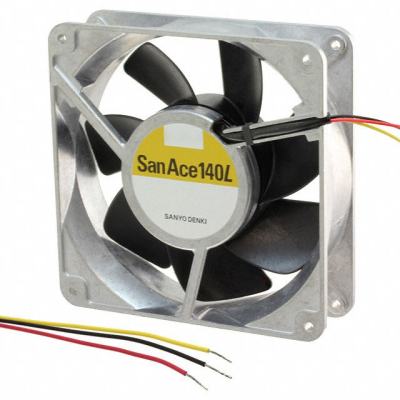

109L1424H101
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 109L1424H101 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 140X38MM 24VDC RBLS TACH | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2600 RPM
- Noise
- 46.0 dB(A)
- Width
- 38.00mm
- Series
- San Ace 140L
- Weight
- 1.3 lbs (589.7 g)
- Air Flow
- 158.9 CFM (4.45m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8.88W
- Voltage Range
- 20.4 ~ 27.6VDC
- Static Pressure
- 0.394 in H2O (98.1 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 140mm L x 140mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.370A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
