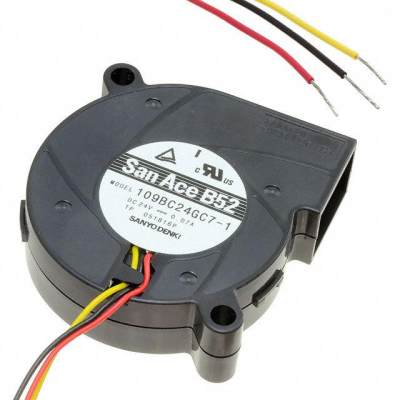

109BC24GC7-1
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 2 pcs
|
|
|---|---|---|---|
| Datasheet: | 109BC24GC7-1 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | DC BLOWER 52X15MM TACH | $10.11 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6200 RPM
- Noise
- 43.0 dB(A)
- Width
- 15.00mm
- Series
- San Ace B52
- Weight
- 0.073 lb (33.11 g)
- Air Flow
- 4.4 CFM (0.123m³/min)
- Fan Type
- Blower
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.68W
- Voltage Range
- 12 ~ 27.6VDC
- Static Pressure
- 0.860 in H2O (214.2 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square/Rounded - 51mm L x 52.6mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.007A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
