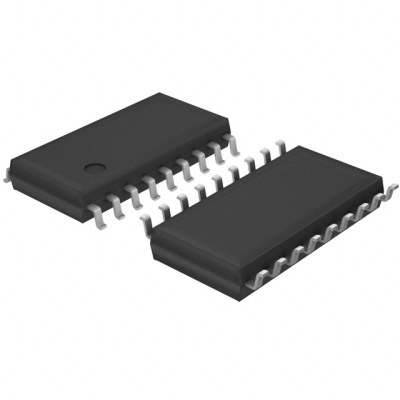

SSC9522S

Product Parameter

Series

SSC9520S

Topology

Half-Bridge

Packaging

Digi-Reel®

Duty Cycle

-

Part Status

Active

Mounting Type

Surface Mount

Package / Case

18-SOIC (0.213", 5.40mm Width)

Control Features

Soft Start

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage

Output Isolation

Isolated

Internal Switch(s)

No

Voltage - Start Up

11.8V

Voltage - Breakdown

-

Frequency - Switching

28.3kHz ~ 300kHz

Operating Temperature

-20°C ~ 85°C (TA)

Supplier Device Package

18-SOP

Voltage - Supply (Vcc/Vdd)

9.8V ~ 35V
