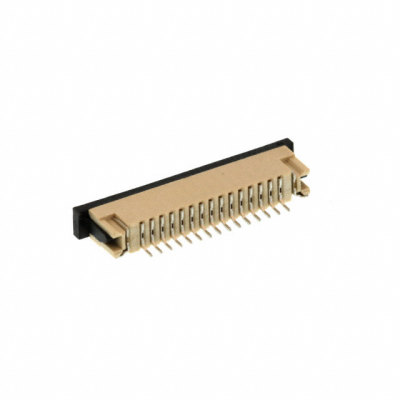

ZF1-15-01-T-WT-TR
| Manufacturer: | Samtec, Inc. |
In Stock 547 pcs
|
|
|---|---|---|---|
| Datasheet: | ZF1-15-01-T-WT-TR | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | ZERO INSERTION FORCE 1MM ASSEMBL | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.039" (1.00mm)
- Series
- ZF1
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Packaging
- Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Housing Color
- Natural
- Mating Cycles
- -
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- -
- Contact Finish
- Tin
- Flat Flex Type
- FFC
- Voltage Rating
- -
- Locking Feature
- Slide Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyphenylene Sulfide (PPS)
- FFC, FCB Thickness
- -
- Height Above Board
- 0.118" (3.00mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 15
- Current Rating (Amps)
- -
- Operating Temperature
- -55°C ~ 105°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-2
