STL7NM60N

Product Parameter

Series

MDmesh™ II

FET Type

N-Channel

Packaging

Digi-Reel®

Vgs (Max)

±25V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Obsolete

Mounting Type

Surface Mount

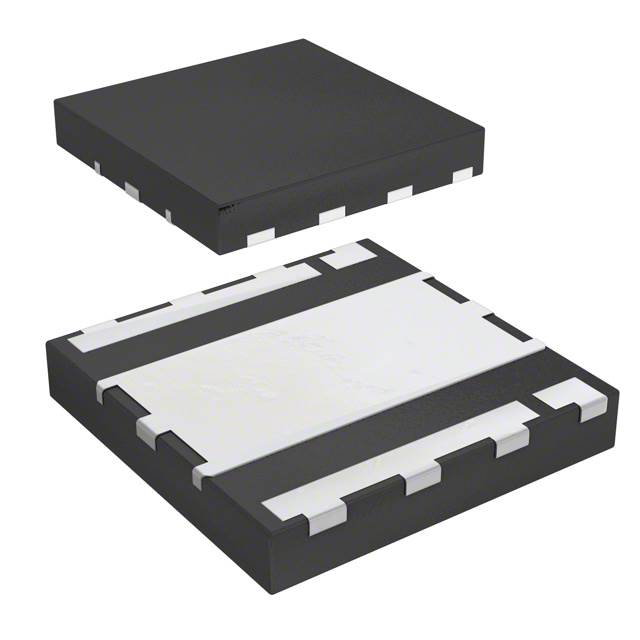

Package / Case

14-PowerVQFN

Base Part Number

STL7

Vgs(th) (Max) @ Id

4V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

900mOhm @ 2.5A, 10V

Power Dissipation (Max)

68W (Tc)

Supplier Device Package

14-PowerFLAT™ (5x5)

Gate Charge (Qg) (Max) @ Vgs

14nC @ 10V

Drain to Source Voltage (Vdss)

600V

Input Capacitance (Ciss) (Max) @ Vds

363pF @ 50V

Current - Continuous Drain (Id) @ 25°C

5.8A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V
