STL7N6F7

Product Parameter

Series

STripFET™

FET Type

N-Channel

Packaging

Digi-Reel®

Vgs (Max)

±20V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Active

Mounting Type

Surface Mount

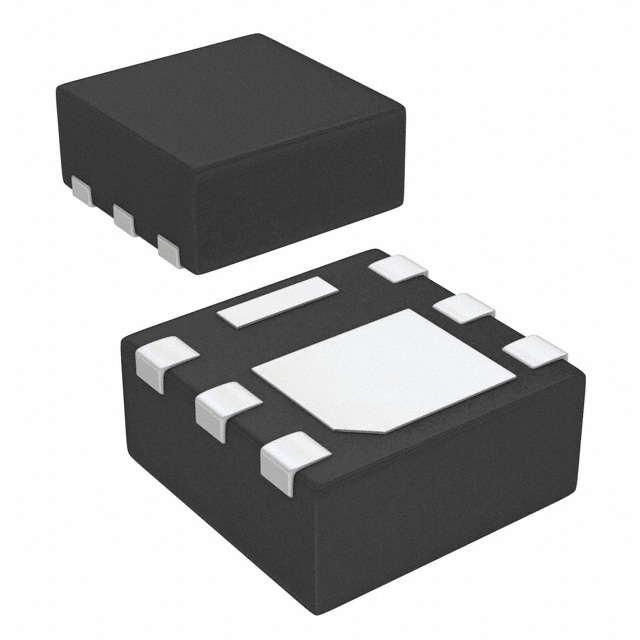

Package / Case

6-PowerWDFN

Base Part Number

STL7

Vgs(th) (Max) @ Id

4V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

25mOhm @ 3.5A, 10V

Power Dissipation (Max)

2.4W (Ta)

Supplier Device Package

PowerFlat™ (2x2)

Gate Charge (Qg) (Max) @ Vgs

8nC @ 10V

Drain to Source Voltage (Vdss)

60V

Input Capacitance (Ciss) (Max) @ Vds

450pF @ 25V

Current - Continuous Drain (Id) @ 25°C

7A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V
