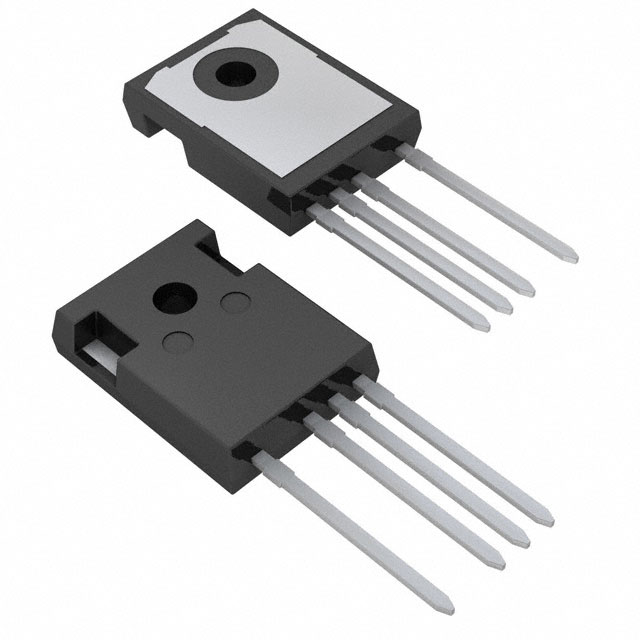

STGW40H65DFB-4
| Manufacturer: | STMicroelectronics |
In Stock 1459 pcs
|
|
|---|---|---|---|
| Datasheet: | STGW40H65DFB-4 | ||
| Product Category: | Transistors - IGBTs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | IGBT | $5.01 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- HB
- IGBT Type
- Trench Field Stop
- Input Type
- Standard
- Gate Charge
- 210nC
- Part Status
- Active
- Power - Max
- 283W
- Mounting Type
- Through Hole
- Package / Case
- TO-247-4
- Test Condition
- 400V, 40A, 5Ohm, 15V
- Base Part Number
- STGW40
- Switching Energy
- 200µJ (on), 410µJ (off)
- Td (on/off) @ 25°C
- 40ns/142ns
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Supplier Device Package
- TO-247-4L
- Vce(on) (Max) @ Vge, Ic
- 2V @ 15V, 40A
- Reverse Recovery Time (trr)
- 62ns
- Current - Collector (Ic) (Max)
- 80A
- Current - Collector Pulsed (Icm)
- 160A
- Voltage - Collector Emitter Breakdown (Max)
- 650V
