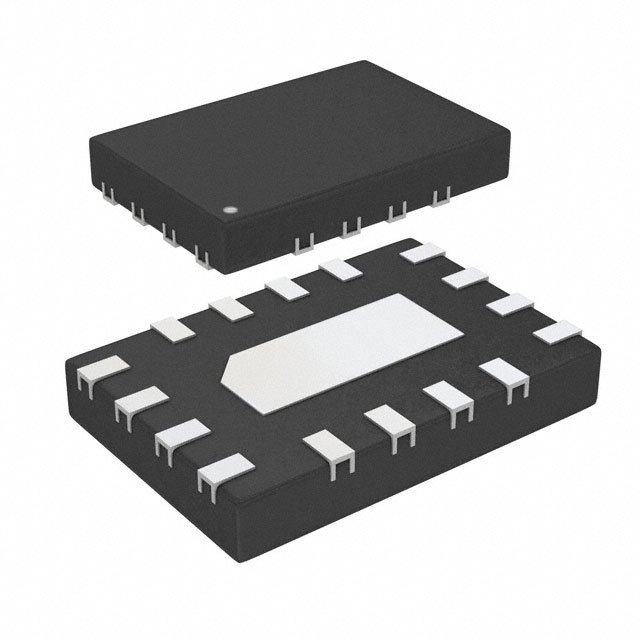

STG3693QTR
| Manufacturer: | STMicroelectronics |
In Stock 1109 pcs
|
|
|---|---|---|---|
| Datasheet: | STG3693QTR | ||
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers | Reference Price (In US Dollars) | 1pcs |
| Description: | IC SWITCH QUAD SPDT 16QFN | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Crosstalk
- -78dB @ 1MHz
- Packaging
- Digi-Reel®
- Part Status
- Active
- -3db Bandwidth
- 800MHz
- Package / Case
- 16-UFQFN Exposed Pad
- Switch Circuit
- SPDT
- Base Part Number
- STG3693
- Charge Injection
- 5pC
- Number of Circuits
- 4
- Operating Temperature
- -55°C ~ 125°C (TA)
- Supplier Device Package
- 16-QFN (2.6x1.8)
- On-State Resistance (Max)
- 5.2Ohm
- Voltage - Supply, Dual (V±)
- -
- Switch Time (Ton, Toff) (Max)
- 15ns, 5ns
- Voltage - Supply, Single (V+)
- 1.65V ~ 4.3V
- Current - Leakage (IS(off)) (Max)
- 20nA
- Multiplexer/Demultiplexer Circuit
- 2:1
- Channel-to-Channel Matching (ΔRon)
- 300mOhm
- Channel Capacitance (CS(off), CD(off))
- 5pF
