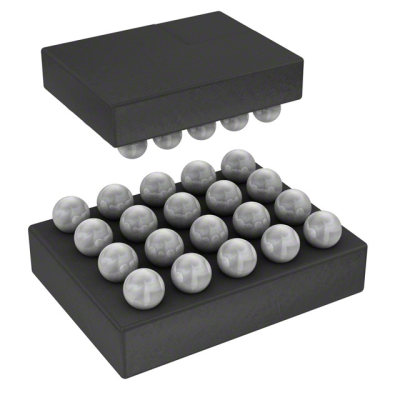

RT8540WSC

Product Parameter

Type

DC DC Regulator

Series

-

Dimming

PWM

Topology

Step-Up (Boost)

Frequency

2MHz

Packaging

Bulk

Part Status

Obsolete

Applications

LED Lighting

Mounting Type

Surface Mount

Package / Case

20-UFBGA, WLCSP

Voltage - Output

2.5V ~ 5.7V

Number of Outputs

3

Internal Switch(s)

Yes

Operating Temperature

-40°C ~ 85°C (TA)

Voltage - Supply (Max)

5.5V

Voltage - Supply (Min)

2.5V

Supplier Device Package

20-WLCSP (1.82x2.22)

Current - Output / Channel

1.5A (Flash)
