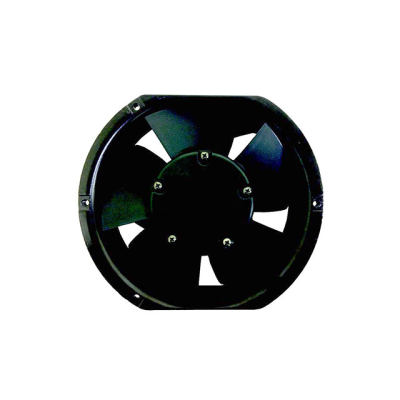

FDD1-17251CBAW3C
| Manufacturer: | Qualtek |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FDD1-17251CBAW3C | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X51MM 12VDC WIRE | $65.52 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2800 RPM
- Noise
- 52.0 dB(A)
- Width
- 51.00mm
- Series
- HPLC, FDD1-17251
- Weight
- 2.5 lbs (1.1 kg)
- Air Flow
- 220.0 CFM (6.16m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor, Speed Sensor (Tach)
- Approvals
- CE, cURus, TUV
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 15.70W
- Voltage Range
- -
- Static Pressure
- 0.571 in H2O (142.2 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 151mm H
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 1.31A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
