Lanka Micro

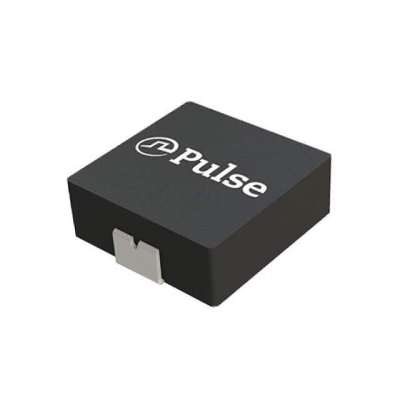

PA4342.153NLT
| Manufacturer: | Pulse Electronics Power |
In Stock 6290 pcs
|
|
|---|---|---|---|
| Datasheet: | PA4342.153NLT | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 15UH 6.25A 45 MOHM SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Molded
- Series
- PA4342.XXXNLT
- Ratings
- AEC-Q200
- Features
- -
- Q @ Freq
- -
- Packaging
- Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 15µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- -
- Size / Dimension
- 0.453" L x 0.406" W (11.50mm x 10.30mm)
- DC Resistance (DCR)
- 45mOhm Max
- Current - Saturation
- 10A
- Current Rating (Amps)
- 6.25A
- Height - Seated (Max)
- 0.157" (4.00mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- -
- Inductance Frequency - Test
- 100kHz
