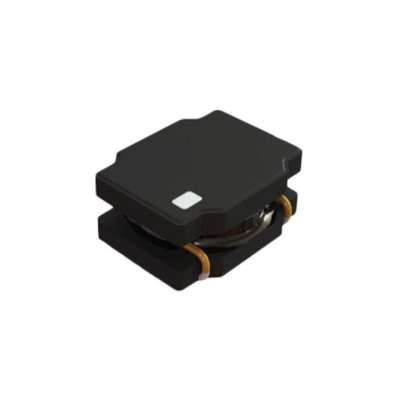

PA4335.222NLT
| Manufacturer: | Pulse Electronics Power |
In Stock 1400 pcs
|
|
|---|---|---|---|
| Datasheet: | PA4335.222NLT | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 2.2UH 1.9A 120 MOHM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- PA4335.XXXNLT
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 2.2µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Iron
- Size / Dimension
- 0.106" L x 0.087" W (2.70mm x 2.20mm)
- DC Resistance (DCR)
- 120mOhm Max
- Current - Saturation
- 2.6A
- Current Rating (Amps)
- 1.9A
- Height - Seated (Max)
- 0.047" (1.20mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 32MHz
- Inductance Frequency - Test
- 1MHz
