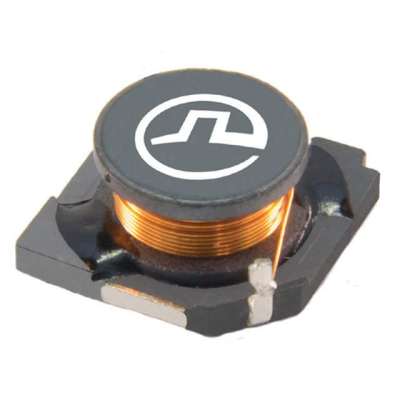

PA4305.105NLT
| Manufacturer: | Pulse Electronics Power |
In Stock 1262 pcs
|
|
|---|---|---|---|
| Datasheet: | PA4305.105NLT | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 1MH 200MA 14.823 OHM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- PA4305.XXXNL
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±20%
- Inductance
- 1mH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- -
- Size / Dimension
- 0.248" L x 0.248" W (6.30mm x 6.30mm)
- DC Resistance (DCR)
- 14.823Ohm Max
- Current - Saturation
- -
- Current Rating (Amps)
- 200mA
- Height - Seated (Max)
- 0.126" (3.20mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- -
- Inductance Frequency - Test
- 100kHz
