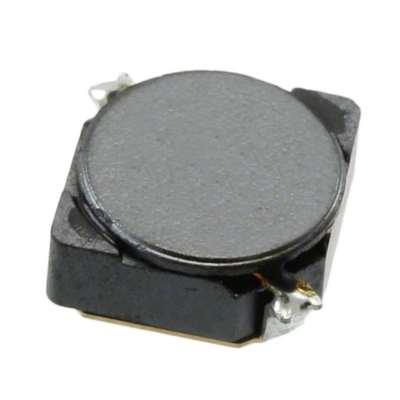

PA4301.102NLT
| Manufacturer: | Pulse Electronics Power |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PA4301.102NLT | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 1UH 3.6A 18.2 MOHM SMD | $0.42 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- PA4301.XXXNLT
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR)
- Shielding
- Shielded
- Tolerance
- ±30%
- Inductance
- 1µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
- Size / Dimension
- 0.283" L x 0.283" W (7.20mm x 7.20mm)
- DC Resistance (DCR)
- 18.2mOhm Max
- Current - Saturation
- -
- Current Rating (Amps)
- 3.6A
- Height - Seated (Max)
- 0.118" (3.00mm)
- Operating Temperature
- -40°C ~ 125°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- -
- Inductance Frequency - Test
- 100kHz
