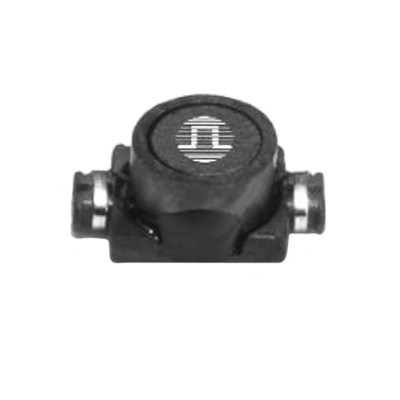

P1174.103NLT
| Manufacturer: | Pulse Electronics Power |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | P1174.103NLT | ||
| Product Category: | Fixed Inductors | Reference Price (In US Dollars) | 1pcs |
| Description: | FIXED IND 10UH 800MA 73 MOHM SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Wirewound
- Series
- P1174NL
- Ratings
- -
- Features
- -
- Q @ Freq
- -
- Packaging
- Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 10µH
- Part Status
- Discontinued at Digi-Key
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- -
- Size / Dimension
- 0.265" L x 0.175" W (6.73mm x 4.45mm)
- DC Resistance (DCR)
- 73mOhm Max
- Current - Saturation
- 800mA
- Current Rating (Amps)
- 800mA
- Height - Seated (Max)
- 0.110" (2.79mm)
- Operating Temperature
- -40°C ~ 130°C
- Supplier Device Package
- -
- Frequency - Self Resonant
- 31MHz
- Inductance Frequency - Test
- 100kHz
