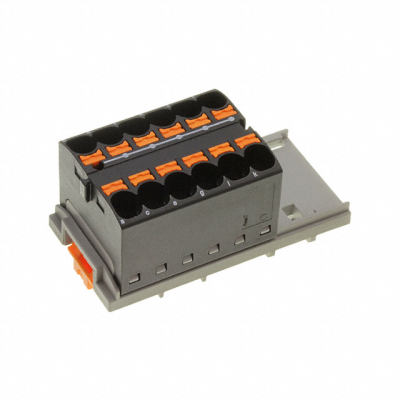

3273562
| Manufacturer: | Phoenix Contact |
In Stock 30 pcs
|
|
|---|---|---|---|
| Datasheet: | 3273562 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |
| Description: | DISTRIBUTION BLOCK BLACK | $8.88 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Middle
- Length
- 2.287" (58.10mm)
- Series
- CLIPLINE PTFIX
- Features
- -
- Part Status
- Active
- Current - UL
- 32A
- Height (Max)
- 1.276" (32.40mm)
- Voltage - UL
- 600V
- Current - IEC
- 32A
- Housing Color
- Black
- Mounting Type
- DIN Rail
- Voltage - IEC
- 800V
- Number of Levels
- 6
- Stripping Length
- 10mm ~ 12mm
- Terminal - Width
- 28.6mm
- Termination Style
- Push In, Spring
- Number of Positions
- 12
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -60°C ~ 130°C
- Wire Gauge or Range - AWG
- 10-24 AWG
- Wire Gauge or Range - mm²
- 0.2-6mm²
- Material Flammability Rating
- UL94 V-0
