3273142
| Manufacturer: | Phoenix Contact |
In Stock 96 pcs
|
|
|---|---|---|---|
| Datasheet: | 3273142 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |

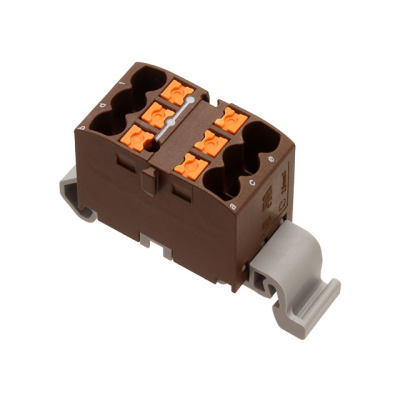

| Description: | DISTRIBUTION BLOCK BROWN | $3.24 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Middle
- Length
- 1.799" (45.70mm)
- Series
- CLIPLINE PTFIX
- Features
- -
- Part Status
- Active
- Current - UL
- 5A
- Height (Max)
- 1.217" (30.90mm)
- Voltage - UL
- 600V
- Current - IEC
- 24A
- Housing Color
- Brown
- Mounting Type
- DIN Rail
- Voltage - IEC
- 690V
- Number of Levels
- 3
- Stripping Length
- 8mm ~ 10mm
- Terminal - Width
- 16.0mm
- Termination Style
- Push In, Spring
- Number of Positions
- 6
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -60°C ~ 130°C
- Wire Gauge or Range - AWG
- 12-26 AWG
- Wire Gauge or Range - mm²
- 0.14-4mm²
- Material Flammability Rating
- UL94 V-0
