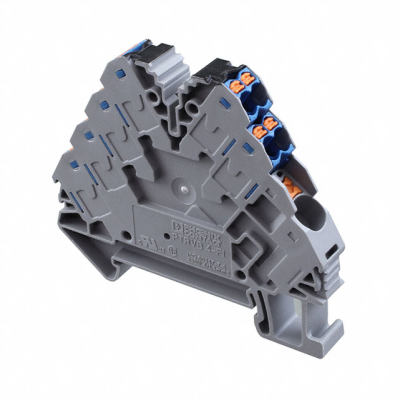

3270221
| Manufacturer: | Phoenix Contact |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | 3270221 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |
| Description: | POTENTIAL DISTRIBUTORS WITH OPTI | $20.1 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Marshalling Connector
- Length
- 2.520" (64.00mm)
- Series
- CLIPLINE PT
- Features
- -
- Part Status
- Active
- Current - UL
- 25A
- Height (Max)
- 2.480" (63.00mm)
- Voltage - UL
- 300V
- Current - IEC
- 32A
- Housing Color
- Gray
- Mounting Type
- DIN Rail
- Voltage - IEC
- 250V
- Number of Levels
- 4
- Stripping Length
- 8mm ~ 12mm
- Terminal - Width
- 8.3mm
- Termination Style
- Push In, Spring
- Number of Positions
- 13
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 10-12 AWG
- Wire Gauge or Range - mm²
- 0.14-6mm²
- Material Flammability Rating
- UL94 V-0
