3212390
| Manufacturer: | Phoenix Contact |
In Stock 125 pcs
|
|
|---|---|---|---|
| Datasheet: | 3212390 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |

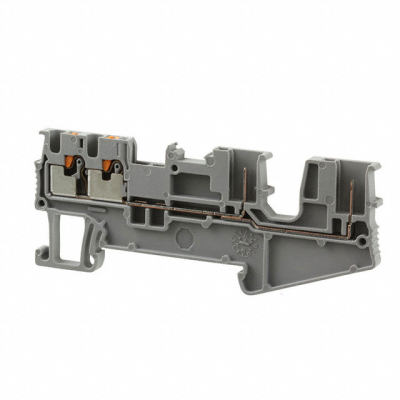

| Description: | TERM BLK PLUG 4POS 3.5MM GRAY | $2.16 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug Connection
- Length
- 3.090" (78.49mm)
- Series
- CLIPLINE PT
- Features
- -
- Part Status
- Active
- Current - UL
- 5A
- Height (Max)
- 1.555" (39.50mm)
- Voltage - UL
- 300V
- Current - IEC
- 17.5A
- Housing Color
- Gray
- Mounting Type
- DIN Rail
- Voltage - IEC
- 500V
- Number of Levels
- 1
- Stripping Length
- 8mm
- Terminal - Width
- 3.5mm
- Termination Style
- Plug Receptacles, Push In, Spring
- Number of Positions
- 4
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 14-26 AWG
- Wire Gauge or Range - mm²
- 0.14-1.5mm²
- Material Flammability Rating
- UL94 V-0
