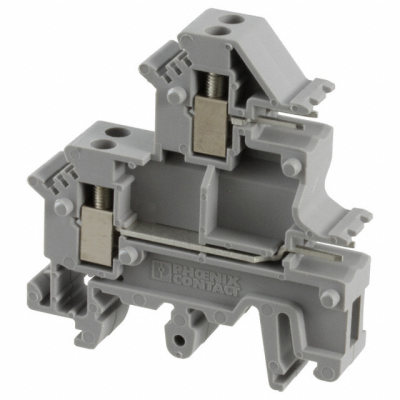

2770888
| Manufacturer: | Phoenix Contact |
In Stock 100 pcs
|
|
|---|---|---|---|
| Datasheet: | 2770888 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLK PLUG 4POS 5.08MM GRAY | $7.13 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug Connection
- Length
- 1.969" (50.01mm)
- Series
- CLIPLINE UKK
- Features
- -
- Part Status
- Active
- Current - UL
- 10A
- Height (Max)
- 2.402" (61.00mm)
- Voltage - UL
- 300V
- Current - IEC
- 12A
- Housing Color
- Gray
- Mounting Type
- DIN Rail
- Voltage - IEC
- 250V
- Number of Levels
- 2
- Stripping Length
- 8mm
- Terminal - Width
- 5.1mm
- Termination Style
- Plug Receptacles, Screw
- Number of Positions
- 4
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 12-30 AWG
- Wire Gauge or Range - mm²
- 0.2-4mm²
- Material Flammability Rating
- UL94 V-2
