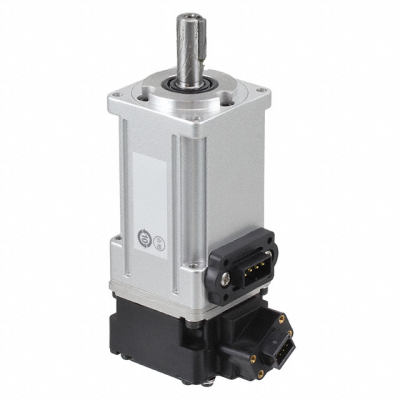

MSMF012L1U1
| Manufacturer: | Panasonic Industrial Automation Sales |
In Stock 3 pcs
|
|
|---|---|---|---|
| Datasheet: | MSMF012L1U1 | ||
| Product Category: | Motors - AC, DC | Reference Price (In US Dollars) | 1pcs |
| Description: | MOTOR AC SERVO 200V LI 100W IP67 | $531.05 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Type
- AC Motor
- Series
- MINAS A6
- Weight
- 1.5 lbs (680.4 g)
- Features
- Key
- Function
- Servomotor
- Approvals
- CE, cULus, cURus
- Motor Type
- -
- Part Status
- Active
- Encoder Type
- Absolute
- Power - Rated
- 100W
- Voltage - Rated
- 200VAC
- Diameter - Shaft
- 0.315" (8.00mm)
- Size / Dimension
- Square - 1.496" x 1.496" (38.00mm x 38.00mm)
- Termination Style
- Connector
- Gear Reduction Ratio
- -
- Mounting Hole Spacing
- 1.772" (45.00mm)
- Operating Temperature
- 0°C ~ 55°C
- Length - Shaft and Bearing
- 0.984" (25.00mm)
- Torque - Rated (oz-in / mNm)
- 45.32 / 320
- Torque - Max Momentary (oz-in / mNm)
- 134.5 / 950
