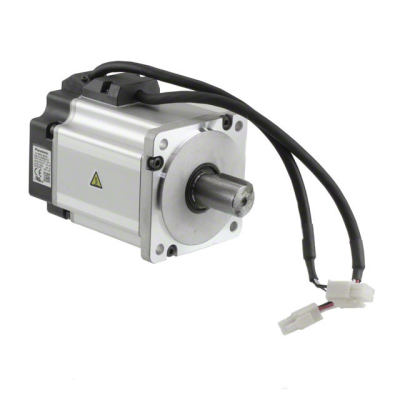

MSMD082J1U
| Manufacturer: | Panasonic Industrial Automation Sales |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MSMD082J1U | ||
| Product Category: | Motors - AC, DC | Reference Price (In US Dollars) | 1pcs |
| Description: | SERVOMOTOR 3000 RPM 200VAC | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Type
- AC Motor
- Series
- MINAS LIQI
- Weight
- 5 lbs (2.3 kg)
- Features
- Key, Oil Seal
- Function
- Servomotor
- Approvals
- CE, CSA, cULus, TUV, UL
- Motor Type
- -
- Part Status
- Obsolete
- Encoder Type
- Incremental
- Power - Rated
- 750W
- Voltage - Rated
- 200VAC
- Diameter - Shaft
- 0.748" (19.00mm)
- Size / Dimension
- Square - 3.150" x 3.150" (80.00mm x 80.00mm)
- Termination Style
- Wire Leads
- Gear Reduction Ratio
- -
- Mounting Hole Spacing
- 3.543" (90.00mm)
- Operating Temperature
- 0°C ~ 40°C
- Length - Shaft and Bearing
- 1.378" (35.00mm)
- Torque - Rated (oz-in / mNm)
- 339.9 / 2400
- Torque - Max Momentary (oz-in / mNm)
- 1005 / 7100
