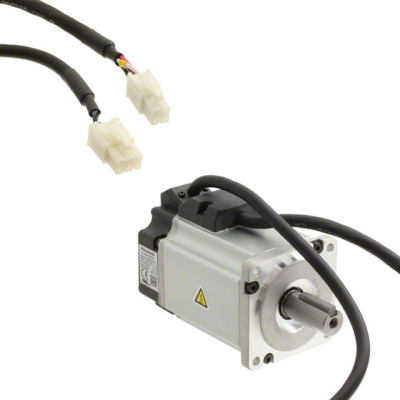

MSMD042G1S
| Manufacturer: | Panasonic Industrial Automation Sales |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | MSMD042G1S | ||
| Product Category: | Motors - AC, DC | Reference Price (In US Dollars) | 1pcs |
| Description: | SERVOMOTOR 3000 RPM 200VAC | $543.4 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Type
- AC Motor
- Series
- MINAS A5
- Weight
- 2.6 lbs (1.2 kg)
- Features
- Key
- Function
- Servomotor
- Approvals
- CE, CSA, cULus, TUV, UL
- Motor Type
- -
- Part Status
- Active
- Encoder Type
- Incremental
- Power - Rated
- 400W
- Voltage - Rated
- 200VAC
- Diameter - Shaft
- 0.551" (14.00mm)
- Size / Dimension
- Square - 2.362" x 2.362" (60.00mm x 60.00mm)
- Termination Style
- Wire Leads
- Gear Reduction Ratio
- -
- Mounting Hole Spacing
- 2.756" (70.00mm)
- Operating Temperature
- 0°C ~ 40°C
- Length - Shaft and Bearing
- 1.181" (30.00mm)
- Torque - Rated (oz-in / mNm)
- 184.1 / 1300
- Torque - Max Momentary (oz-in / mNm)
- 538.1 / 3800
