Lanka Micro

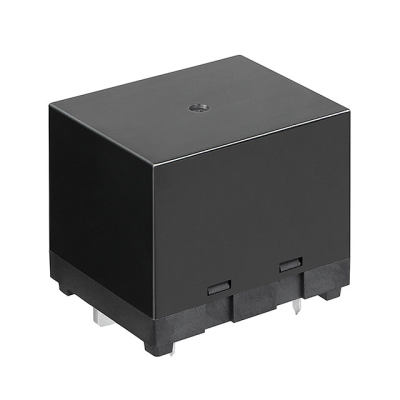

HE1AN-W-DC9V-Y7
| Manufacturer: | Panasonic Electric Works |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | HE1AN-W-DC9V-Y7 | ||
| Product Category: | Power Relays, Over 2 Amps | Reference Price (In US Dollars) | 1pcs |
| Description: | RELAY PWR SPST 120A 9VDC | $40 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- HE-N
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tray
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Flux Protection
- Coil Current
- 278mA
- Coil Voltage
- 9VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 30ms
- Release Time
- 10ms
- Mounting Type
- Through Hole
- Coil Insulation
- Class F
- Coil Resistance
- 32.4 Ohms
- Contact Material
- Silver Nickel (AgNi)
- Switching Voltage
- 480VAC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 6.75 VDC
- Must Release Voltage
- 0.45 VDC
- Operating Temperature
- -40°C ~ 55°C
- Contact Rating (Current)
- 120A
