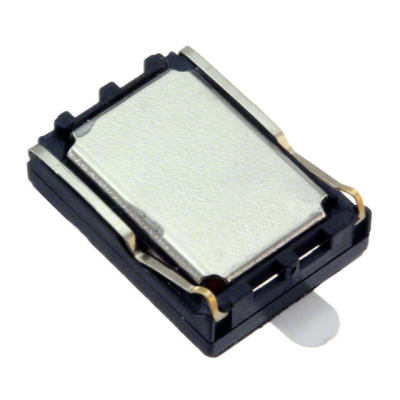

AS01508AO-SC-R
| Manufacturer: | PUI Audio, Inc. |
In Stock 606 pcs
|
|
|---|---|---|---|
| Datasheet: | AS01508AO-SC-R | ||
| Product Category: | Speakers | Reference Price (In US Dollars) | 1pcs |
| Description: | SPEAKER 8OHM 500MW TOP PORT 84DB | $2.89 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- General Purpose
- Shape
- Rectangular
- Series
- Slim Line Micro
- Ratings
- -
- Impedance
- 8 Ohms
- Packaging
- Tray
- Technology
- Magnetic
- Part Status
- Active
- Power - Max
- 1W
- Termination
- Spring Type
- Port Location
- Top
- Power - Rated
- 700mW
- Frequency Range
- 550Hz ~ 20kHz
- Material - Cone
- Polyester, Polyethylene Terephthalate (PET)
- Efficiency - dBA
- 84.00
- Size / Dimension
- 0.591" L x 0.433" W (15.00mm x 11.00mm)
- Efficiency - Type
- Sound Pressure Level (SPL)
- Material - Magnet
- Nd-Fe-B
- Ingress Protection
- -
- Efficiency - Testing
- 100mW/100mm
- Height - Seated (Max)
- 0.154" (3.90mm)
- Frequency - Self Resonant
- 550Hz
