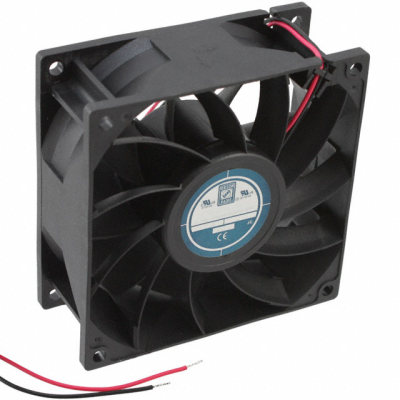

OD9238-12MB
| Manufacturer: | Orion Fans |
In Stock 19 pcs
|
|
|---|---|---|---|
| Datasheet: | OD9238-12MB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38MM 12VDC WIRE | $18.51 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3600 RPM
- Noise
- 47.0 dB
- Width
- 38.00mm
- Series
- OD9238
- Weight
- 0.463 lb (210.01 g)
- Air Flow
- 90.0 CFM (2.52m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 12.00W
- Voltage Range
- 7 ~ 13.2VDC
- Static Pressure
- 0.340 in H2O (84.7 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92.5mm L x 92.5mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.450A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
