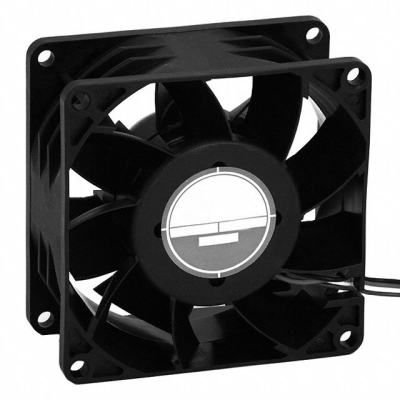

OD8038-12HHB-VXC01A
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD8038-12HHB-VXC01A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X38MM 12VDC WIRE | $16.1 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7100 RPM
- Noise
- 60.0 dB
- Width
- 38.00mm
- Series
- OD8038 VA
- Weight
- -
- Air Flow
- 112.0 CFM (3.14m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Speed Sensor (Tach)
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 22.00W
- Voltage Range
- -
- Static Pressure
- 1.100 in H2O (274.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.9A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
