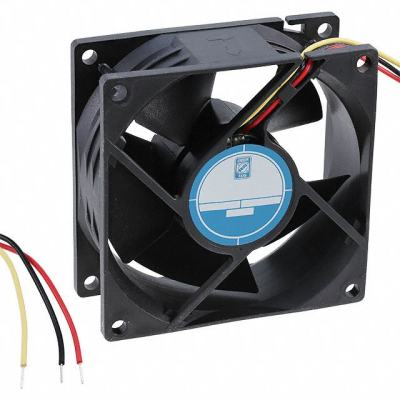

OD8032-24HHB02A
| Manufacturer: | Orion Fans |
In Stock 203 pcs
|
|
|---|---|---|---|
| Datasheet: | OD8032-24HHB02A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X32MM 24VDC WIRE | $17.3 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4200 RPM
- Noise
- 44.0 dB
- Width
- 32.00mm
- Series
- OD8032
- Weight
- 0.238 lb (107.95 g)
- Air Flow
- 55.4 CFM (1.55m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, cURus
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 4.32W
- Voltage Range
- 17 ~ 26.4VDC
- Static Pressure
- 0.320 in H2O (79.7 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.150A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
