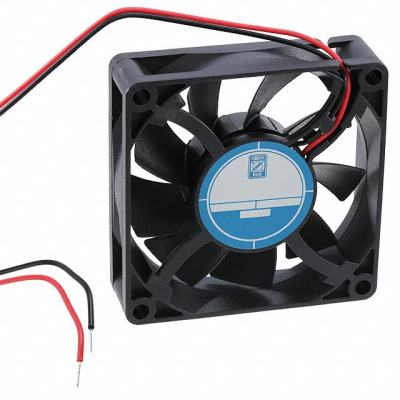

OD7020-12HB
| Manufacturer: | Orion Fans |
In Stock 163 pcs
|
|
|---|---|---|---|
| Datasheet: | OD7020-12HB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 70X20MM 12VDC 41CFM | $10.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4500 RPM
- Noise
- 41.5 dB
- Width
- 20.00mm
- Series
- OD7020
- Weight
- 0.137 lb (62.14 g)
- Air Flow
- 41.0 CFM (1.15m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 5.16W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- -
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 70mm L x 70mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.430A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
